These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
The Toptro TR23 is a miniature portable projector with Bluetooth, Wi-Fi, and wired connection compatibility. It was first released on March 14, 2024 and is currently one of the more reliable portable projectors in the market. It is advertised as a home our outdoor entertainment device that can project any time, anywhere. It comes with a remote control for imaging and sound modification.
The projector uses a 15,000 lumen LED lamp with a 1920 x 1080 resolution. For power, the projector can be plugged into an outlet or be used with batteries for outdoor use. It has 2 built-in speakers but can be connected to headsets or external speakers via Bluetooth connection or a 3.5 mm audio port. Visual media can be shared to the projector through USB or HDMI connection. The projector also uses 5G Wi-Fi and 5.2 Bluetooth compatibility.
Identification

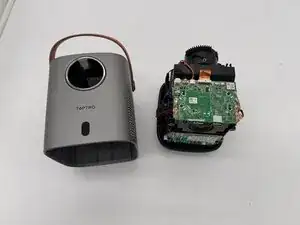

The Toptro TR23 portable projector is a 6.18"L x 5.19"W x 6.88"H grey and black rectangular prism with a brown handle strap on the top. A ceiling mount and the model identification sticker are located at the bottom. The LED projector is on the upper half of the front above the infrared sensor.
Technical Specifications
- Dimensions: 6.18"L x 5.19"W x 6.88"H
- Weight: 4.4 pounds
- Maximum Throw Distance: 16 ft
- Minimum Throw Distance: 4.8 ft
- Lamp Operating life: 150,000 Hours
- Maximum Image Size: 139.1 Inches
- Minimum Image Size: 50 Inches
- Lamp Wattage: 50 watts
- Voltage: 2.3E+2 Volts (AC)
- Brightness: 15,000 lumens
- Maximum Display Resolution: 1920 x 1080
