JBL Tune 700BT Teardown

Published: 31/12/24

Teardown

Introduction

General Specifications

Driver size (mm) - 40

Audio Specifications

Driver sensitivity at 1kHz/1mW (dB) - 102

Dynamic frequency response range (Hz) - 20Hz-20KHz

Impedance (ohms) - 32

Dimensions

Weight (g) - 220

Weight (oz) - 7.76

Control and Connection Specifications

Bluetooth profiles - A2DP 1.2, AVRCP 1.5, HFP 1.6, HSP 1.2

Bluetooth frequency - 2.402GHz-2.480GHz

Bluetooth transmitted modulation - GFSK, π/4DQPSK, 8DPSK

Bluetooth transmitter power - < 5dBm

Bluetooth version - 4.2

Battery

Charging time (hours from empty) - 2

Maximum play time (hours) - 27

  1. lufse5BnsvRFF5R3

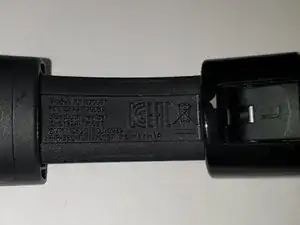

    • Model number is located under headband extension on the left side.

  2. PcuYYaWArYjQfFR1
    PcuYYaWArYjQfFR1
    DLP1Zd5IEinkY66F
    5FuCZXsEihYPNDA4

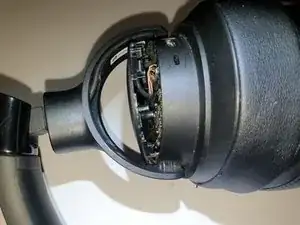

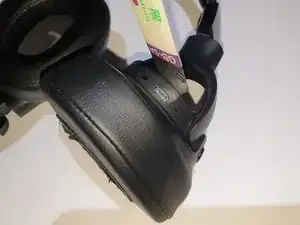

    • cover is held by clips - insert shim at usb-port location, the work it around to undo other clips, this requires medium amount of force.

    • bottom part held by sideways retainers, only top part pried off!

  3. LCqfb5CDMFRAxlIb
    LCqfb5CDMFRAxlIb
    sX4KjKepsqB1Kd65

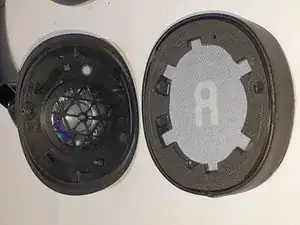

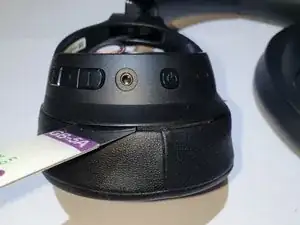

    • ear cup is held by clips, using slim shim separate between padding and plastic.

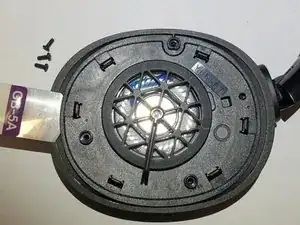

  4. POEALuAyDFF2ZmxC
    POEALuAyDFF2ZmxC
    QPeGAfiNKM2pbLJV
    oQOfBNY14wZkrvtk

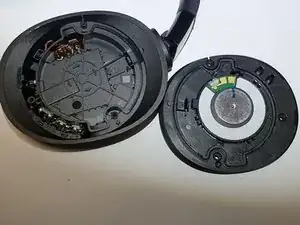

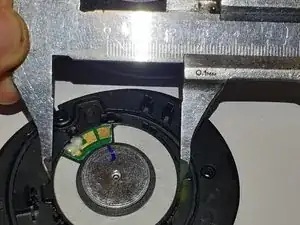

    • driver is held by 3 (three) screws. internal cavity has soft silicone lining that might stick to base plastic, parts will separate with small force.

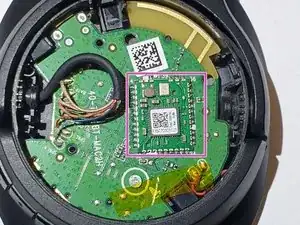

  5. 3f1xWmSLFnJM5whr
    3f1xWmSLFnJM5whr
    1cYmTtgkhOWR6pT1
    QESpkMGBpYeCQATQ

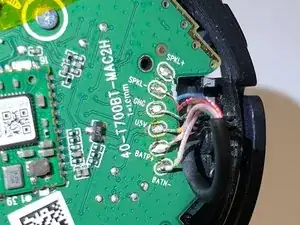

    • pcb is held by one screw and plastic clips

    • VIMICROWX WS9623A (bluetooth ic)

    • CHIPSTAR CS4418D (130mW directd-drive amplifier)

    • LPS P53050 8pin chip (unknown function)

  6. 2o4SLcenDAkuvQRG
    2o4SLcenDAkuvQRG
    L3RCkrGGWNhMSBNx

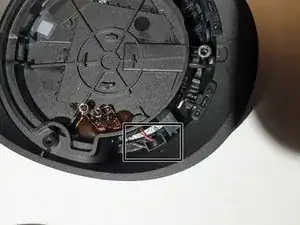

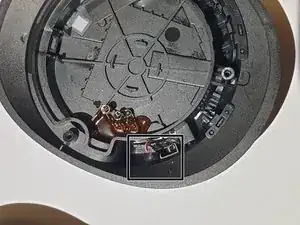

    • microphone capsule is press-held inside dedicated slot (with hole to outside) encapsulated in rubber sleeve. accessible only form ear-cup side.

  7. Bt3ChKVDKGGHROFs
    Bt3ChKVDKGGHROFs
    vmT2DWRbBWFUQYbX

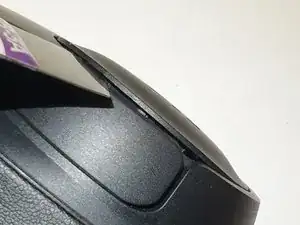

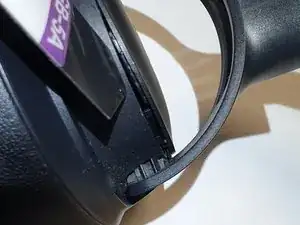

    • cover is held by clips - insert shim at top of location, the work it around to undo other clips, this requires medium amount of force.

    • bottom part held by sideways retainers, only top part pried off!

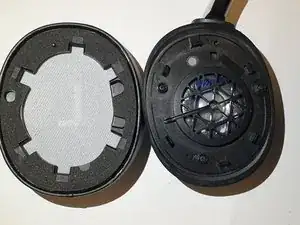

  8. yBJtOGQWlPu6WRB5
    yBJtOGQWlPu6WRB5
    6IleqvumtdJX3Vxc
    ZVwLmVQD5dBlKefE

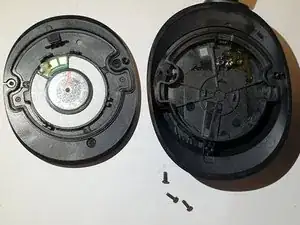

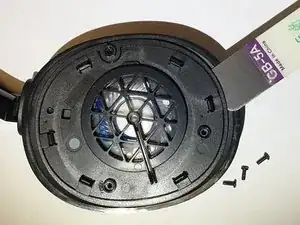

    • driver is held by 3 (three) screws. internal cavity has soft silicone lining that might stick to base plastic, parts will separate with small force.

  9. d1bpmjgPj1nZQjYI
    d1bpmjgPj1nZQjYI
    bnsWroUHRxbal2iJ
    gNfFPB4DhrwHNKWH

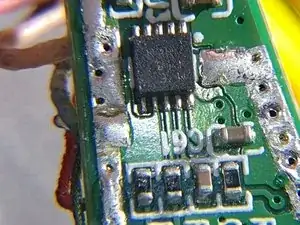

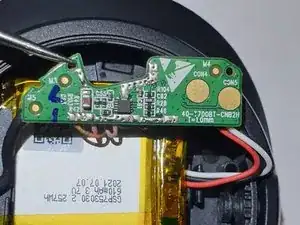

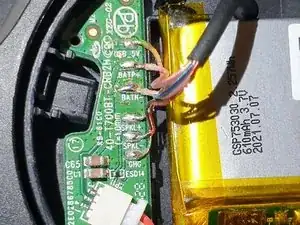

    • charger ic controller and battery
