Introduction

Today we'll be tearing down a Toshiba 2.5" SATA drive. WARNING: YOUR DRIVE WILL NOT WORK AFTER THIS

  1. NJLhUfn4geyK4wlG

    • Unscrew the Phillips screws holding the logic board to the metal case.

  2. FxX4aoTmXynbyP1H
    FxX4aoTmXynbyP1H
    IAe2VxmuWYmPO6Cx
    mNEyic6PNGQKqal3

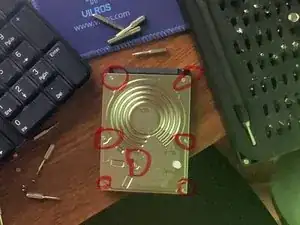

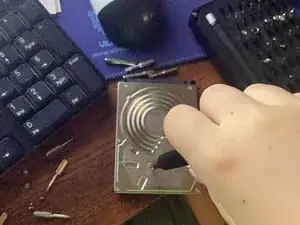

    • Unscrew the 7 screws circled in red. Note that you must peel off the sticker covering the screw closest to the middle (I already did it)

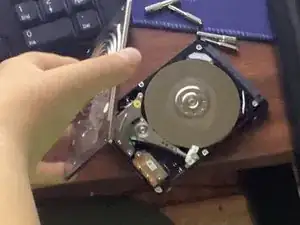

    • Lift the cover off.
