iPhone 5s Display Assembly Replacement

Written By: Fausto Lebron
  • Comments: 0
iPhone 5s Display Assembly Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

  1. ORNsdgEKellJ1Nrl

    • Remove pentalobe screws with torx screwdriver.

  2. QJEQgymmjlsYWFAs
    QJEQgymmjlsYWFAs
    JM2mgJJUwmLXscVk

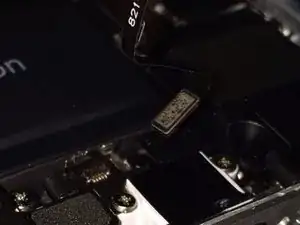

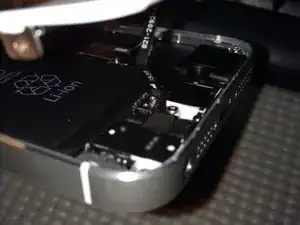

    • After using spudger or suction cup to lift screen. Be careful not to pull screen completely up. The touch id sensor flex cable is attached near the home button. There is a small metal clip that needs to be carefully pry'd off before removing flex cable connector.

  3. BVrXwUVCr3TSkbGO
    BVrXwUVCr3TSkbGO
    5yHIcHlT2XOVs4Ra

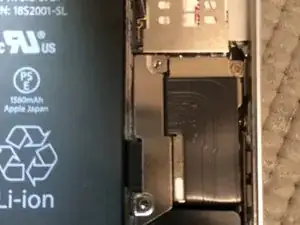

    • Disconnect battery before screen removal by removing 2 screws from shield. Once shield is removed, disconnect battery using nylon spudger. (DO NOT USE METAL TOOLS)

  4. sTYUCS1XqCZoMBkp
    sTYUCS1XqCZoMBkp
    m4cKmZO42RiZeWVl
    AmG6pc1554WrT4DK

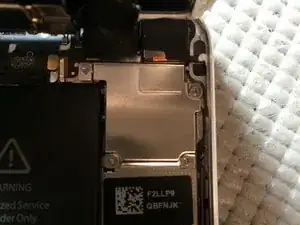

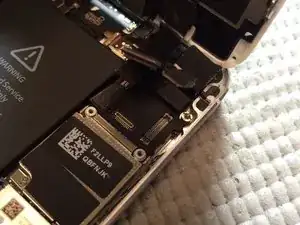

    • Remove four screws from shield covering display assembly connectors. Lift connectors using nylon spudger.

Conclusion

Swap all parts from old display assembly to new assembly. Do not remove all at once, replace components one at a time. To reassemble your device, follow these instructions in reverse order.
