iPhone 16 Pro Max Rear Camera Installation

Written By: Arthur Shi
  • Comments: 0
iPhone 16 Pro Max Rear Camera Installation

Difficulty

Moderate

Steps

3

Time Required

1 - 2 hours

Introduction

Installation steps for the rear camera in the iPhone 16 Pro Max.

  1. yD1EJtGcrnEooEsb

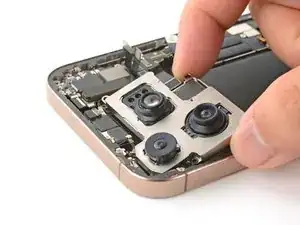

    • Lay the rear camera assembly in its recess.

  2. VYxQXcDbFaYUmOHw

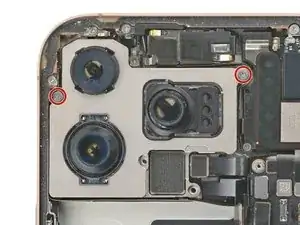

    • Use a Phillips screwdriver to install the two 2.9 mm‑long screws securing the rear camera assembly.

  3. aKQDACfA2efhxRXR
    aKQDACfA2efhxRXR
    3BFq1D3CfHebWRGU

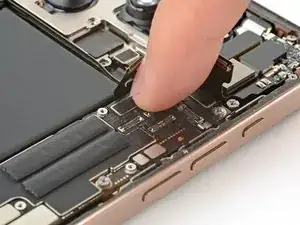

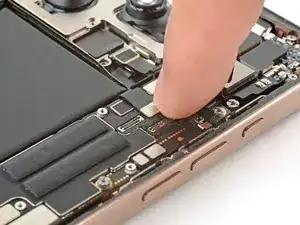

    • Use your finger or a spudger to press and connect the two camera connectors onto the logic board.

    • To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Don't press down in the middle. If the connector is misaligned, the pins can bend, causing permanent damage.
