Yuneec Typhoon Q500 4K Camera Replacement/Fix

Written By: Aiden
  • Comments: 0
Yuneec Typhoon Q500 4K Camera Replacement/Fix

Difficulty

Easy

Steps

6

Time Required

1 - 2 minutes

Introduction

After a crash of the Yuneec Typhoon Q500 4K the camera on the drone is susceptible to breaking. One of the most common problems after a crash is the camera breaks or doesn't it turn on. This guide will instruct you on how to fix the drones camera.

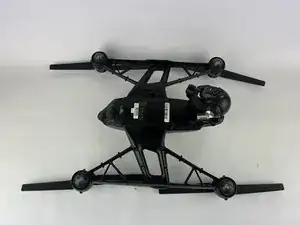

  1. msTyRp6fpu4YUBKU

    • Flip the drone upside down.

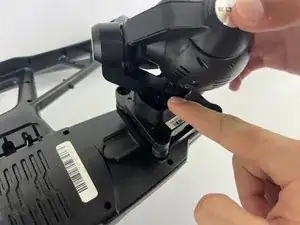

  2. PsLhvRAQgdNc1WPN

    • Have a look at the wires that are connected to the camera.

    • Sometimes after a crash the wires are pulled out or torn upon impact. Check to see the state of them.

    • If they are torn or camera just isn't working, a piece is needed to override the broken wires.

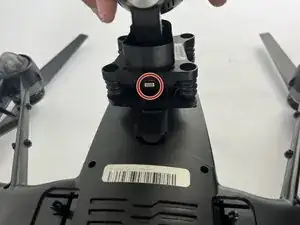

  3. 326YSuUuVKUTokuL

    • Look for the plug where the override cable is located.

  4. VAQLN5YClDOXKxRi

    • Locate the plug to the drone for the override cable.

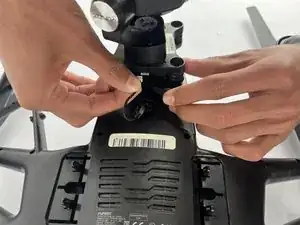

  5. XUnMtQOGsuUbPaKC

    • Plug the override cable from the camera to the drone to reset it.

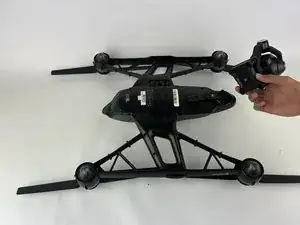

  6. HmUjFyZxeBBHMT25

    • If the previous solution didn’t work, a replacement camera may be necessary. To replace it, slide the entire camera off the drone frame.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
