Introduction

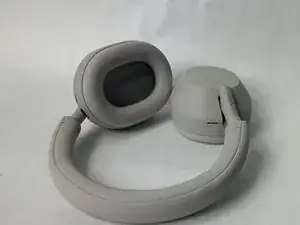

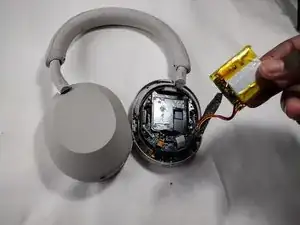

Use this guide to replace a battery on the sony WH-1000mx5
-
-

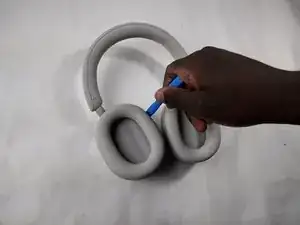

Place the edge of an iFixit opening tool under the earpad cushion.
-
Slide it alongside the edge of the cushion until it detaches from the rest of the headphones
-
-
-

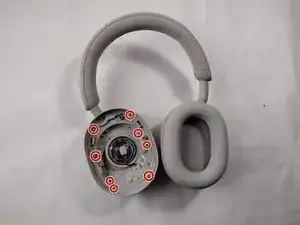

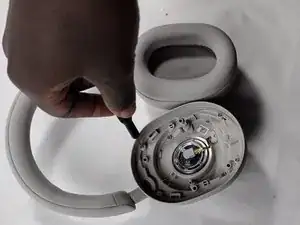

Use a Phillips #000 screwdriver to remove the eight screws along the outer inside edge.
-
There should be a piece of grey foam you can simply remove to uncover the centre 4 screws.
-

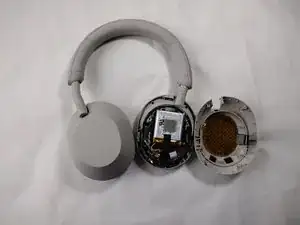

Flip the headphones to the other side and slow lift up the back plastic cover piece.
-

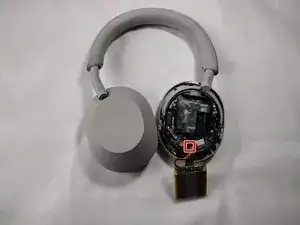

Gently remove the touch sensor's ribbon cable by pulling it out evenly from the main board.
-
To reassemble your device, follow these instructions in reverse order.
