Sony Cyber-shot DSC-WX80 Lens Replacement

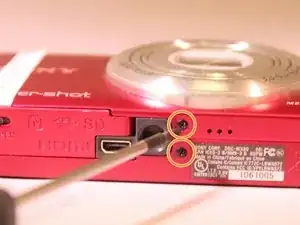

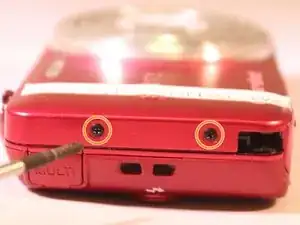

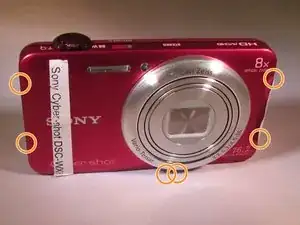

Begin by removing all six 40mm by 10mm black screws holding the outer frame together with the Phillips #00 screwdriver.

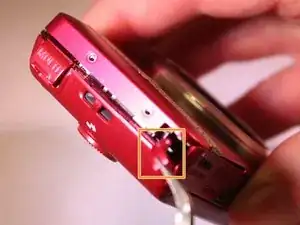

Remove the free-moving flap near the battery port and store in a safe place.

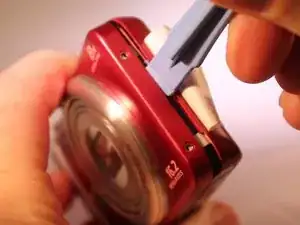

Pry the front cover off gently. Use a plastic opening tool if available.

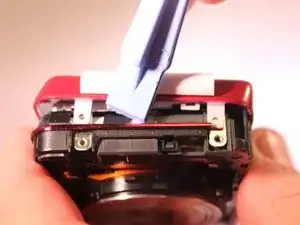

Now pry the back cover off gently, using a plastic opening tool if available.

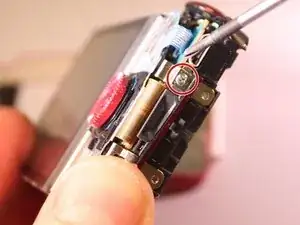

Remove the #00 screw from the right hand side (from the LCD screen side) which is adjacent to the master control dial.

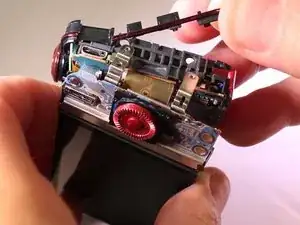

Use a spudger or plastic opening tools to pry up the LCD screen and free the two metal tangs on the left side.

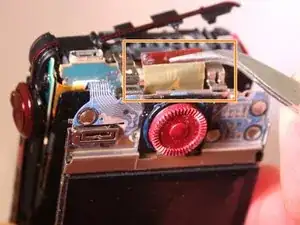

Lift up two more metal tabs held down by a thin red plastic strap on the right (master control dial) side. Reference the third image.

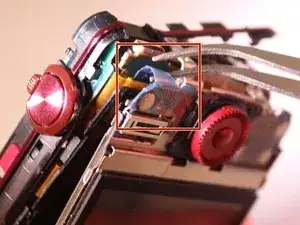

Using a pair of tweezers, remove the blue ribbon from its connection located toward to the top right of the device.

Using a pair of tweezers, remove the gold ribbon from its connection located to the right of the removed blue ribbon.

Your LCD screen is now removed and you can replace it!

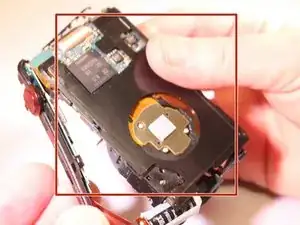

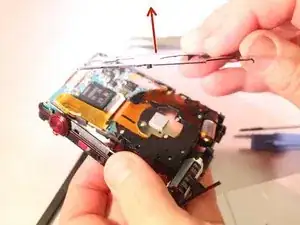

After the LCD screen has been removed there is a black metal plate that can be pulled off revealing the motherboard and the lens.

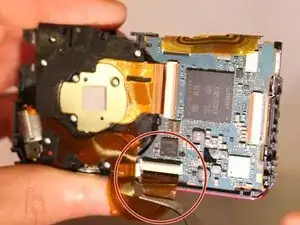

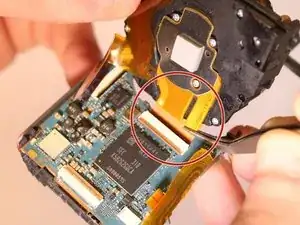

To separate the motherboard from the lens there are two ribbon cables that need to be pulled out of their ports using tweezers.

Now that the Lens has been removed from the motherboard you can replace it!
