Skullcandy Crusher Wireless Folding Hinge Replacement

Written By: Val
  • Comments: 11
Skullcandy Crusher Wireless Folding Hinge Replacement

Difficulty

Moderate

Steps

5

Time Required

10 - 20 minutes

Introduction

You will use this guide to replace the folding hinge in a Skullcandy Crusher Wireless headphones. Replacement folding hinges can be bought online or taken from another Skullcandy Crusher Wireless headphone.

  1. 1iKZxiFHjbLtCeZg
    1iKZxiFHjbLtCeZg
    MJXMY4xZMZMOBjER
    aQJ623EBCwPsxUXx

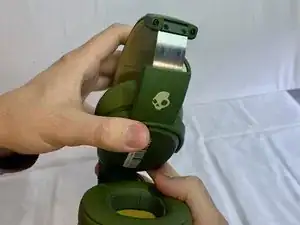

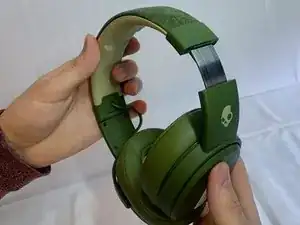

    • Extend and fold the hinge of the headphones you are trying to replace.

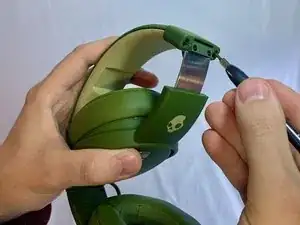

  2. XNaRdPv1ArsoskYp
    XNaRdPv1ArsoskYp
    BTNKgYCksxbGUhJU
    PVhVDjdeWK4RFHqt

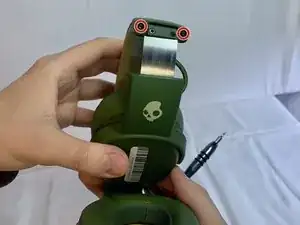

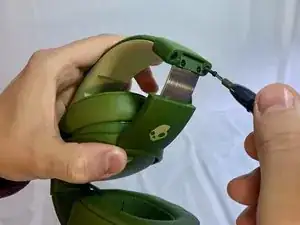

    • Remove two 14 mm Torx T6 screws on the underside of the headband.

    Any idea where to find these specific screws online? Have been searching EVERYWHERE 😬

    Tessa Verstraete -

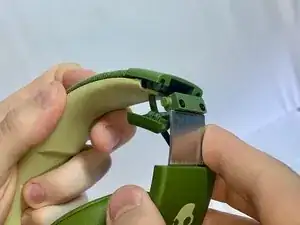

  3. vHvrsWRgHxsUI4mM
    vHvrsWRgHxsUI4mM
    QSIe3YGDnfJKDdg6
    OlnlyCE6gYOCVE2F

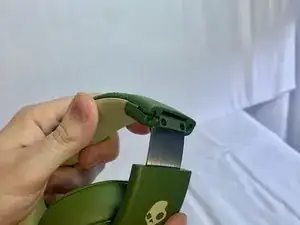

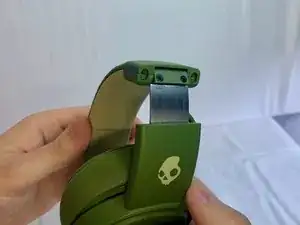

    • Pry the speaker away from the headband with a slight force.

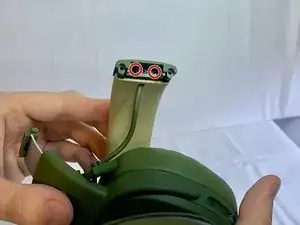

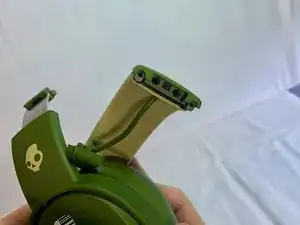

  4. PQhDVpaoNPqpdOGr
    PQhDVpaoNPqpdOGr
    NDxxLBqwZDOvGyJ2
    VAhqvZrYeNVEMqOK

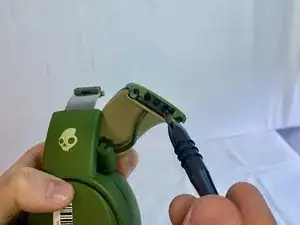

    • Remove two 5 mm Phillips #1 screws on the underside of the headband.

    The screws are surprisingly tight and you don't have much space to work with. Use the correct driver head and work very patiently or you risk stripping the screws and making everything harder for yourself.

    Mariano Trinidad -

  5. Lid2MQaHQZC4tZTx
    Lid2MQaHQZC4tZTx
    tSSMUYHTWEKmvA5Z

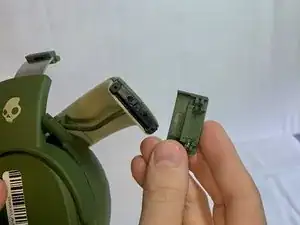

    • Remove the top plastic part of the hinge.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Val

Member since: 01/04/22

1178 Reputation

9 comments

Hello. Any idea where can i buy the folding hinge from? thx!

Liviu -

Hi, Like the explanation but can you tell me where to buy tge folding hinge?

Menno de Gier -

I'm 3D printing these here https://www.ebay.co.uk/itm/364153346438

Stronger than original.

Eatfire -

This is my alternative solution, albeit a temporary one. Sharing for people that end up here through search engines.

----

I figured out a temporary fix. I am posting this for others arriving here from search engines and the like. I assume OP's problem has long been solved. My fix is based on somebody else's fix.

I have 3D printed parts on the way, but my 'design' may actually press down on my ears better than the original. 🤔

What you'll need:

-Tie rip 2 mm
-Tie rip 4 mm
-Drill + 1,5 mm drillbit for metal
-Strong thin elastic.

-Pliers (for making sure the tierips are real tight.)

https://guide-images.cdn.ifixit.com/igi/...

Cus7od35 -

Thanks for this guide! It would help to have another step or two… I can replace the hinge now, but how do I get the old hinge off? The half surrounding the wire, I mean? The last photo shows it tucked away but still attached. Any suggestions?

DrP -

Never mind. Answered my own question. The Etsy seller who provided a 3D printed hinge also included instructions that specified to break the old hinge. I wasn’t strong enough but my husband did it for me.

DrP -

This guide doesn't include a way to take off the hinge half that hangs off the cable, but we figured out a way. You just use pliers to bend it. This will obviously break that half so you can't reuse it but you should have replacement parts already.

Mariano Trinidad -

Does anyone know where to find the exact screw used for the headphones

Gabriel Olguin -
