Introduction

The dust cover is the clear plastic cover that keeps debris from flying everywhere. It can be opened by pushing down on the yellow release button. It can be helpful to remove the dust cover after using the vacuum to help you get a better clean. This will also give you better access to the fabric filter and filter cups. Follow this guide to learn how to replace the dust cover from your Shark Wandvac Power Pet WV410BL if it is damaged.

  1. dKy2EajuWuR1RmLT
    dKy2EajuWuR1RmLT
    xfxFfxtbCwCbKXDU

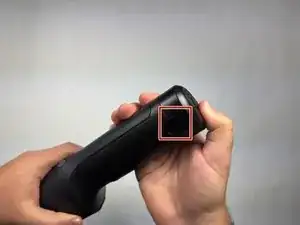

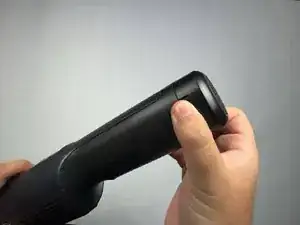

    • Locate the tabs to push in on the battery.

    • Squeeze down on the tabs.

  2. ZFF52qF2AnAfAEgG
    ZFF52qF2AnAfAEgG
    YGCkUm3w3BUL2RBG
    UxEHbpYqELE6k3kp

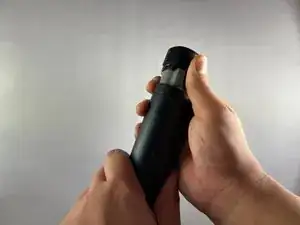

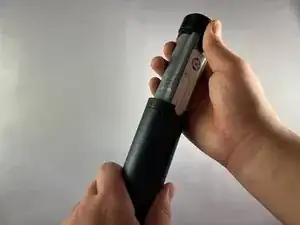

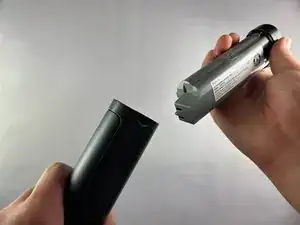

    • Pull the battery out.

  3. JW42kNCe3ckwxOcH
    JW42kNCe3ckwxOcH
    R6TtHpq4rQoBkVOK

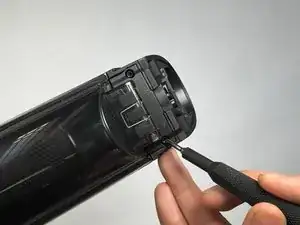

    • Use a Torx T3 screwdriver to remove the two screws that attach the dust cover to the vacuum.

  4. 5Ofl5CWfXZo6lWNh

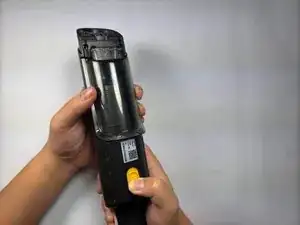

    • Push and slide the yellow release button down to open the dust cover.

  5. HqcBkmYHsBHMpcWA
    HqcBkmYHsBHMpcWA
    TjHabCd3gTtq4aHU

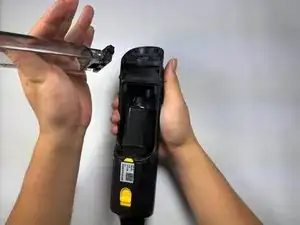

    • Remove the dust cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
