Replace the motor and switch for Dexter UP20 Impact Driver

Written By: Antoine Lafillé
  • Comments: 0
Replace the motor and switch for Dexter UP20 Impact Driver

Difficulty

Moderate

Steps

7

Time Required

3 minutes

Introduction

  1. Remove the battery. Remove the screws using a T10 bit or T10 screwdriver.

    • Remove the battery. Remove the screws using a T10 bit or T10 screwdriver.

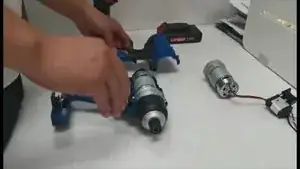

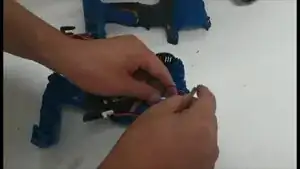

  2. After removing the top shell, remove the battery connector, the switch, the motor and gearbox, and finally the LEDs. Separate the motor from the gearbox.

    • After removing the top shell, remove the battery connector, the switch, the motor and gearbox, and finally the LEDs. Separate the motor from the gearbox.

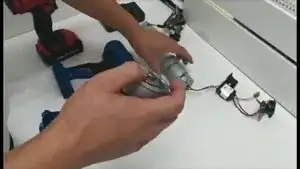

  3. Put the new motor in the gearbox

    • Put the new motor in the gearbox

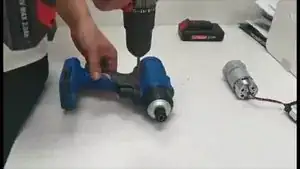

  4. Place the LEDs and their cables back into the case, then do the same for the motor and its cables.

    • Place the LEDs and their cables back into the case, then do the same for the motor and its cables.

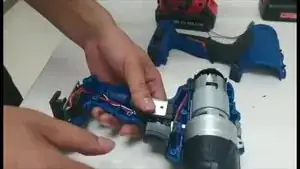

  5. Install the switch, the battery connector, the LED and its protective lens, and position the cables back into the case.

    • Install the switch, the battery connector, the LED and its protective lens, and position the cables back into the case.

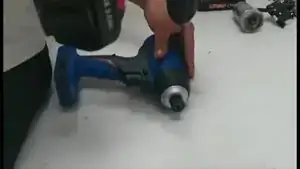

  6. Reattach the top shell.

    • Reattach the top shell.

  7. Once the top shell is reattached, screw it back onto the rest of the case.

    • Once the top shell is reattached, screw it back onto the rest of the case.
