Qnap TS-251 red lights fix

Written By: Radim_54
  • Comments: 0
Qnap TS-251 red lights fix

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

  1. C31BJQTo6CrnuJBa
    C31BJQTo6CrnuJBa
    3QLHJMgFTyUaXDqK

    • Start by taking out disk trays

    • Remove 2 screws

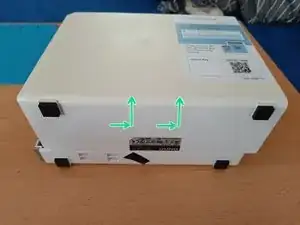

  2. YgYZ6GXGTZconRwr

    • Slide and remove the top cover

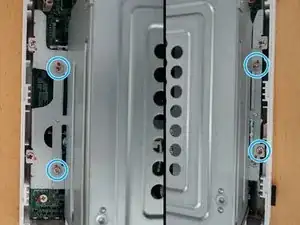

  3. iLeRQjUPSWKkUxZY

    • Remove 4 screws, then take out the metal thing with the PCIe card.

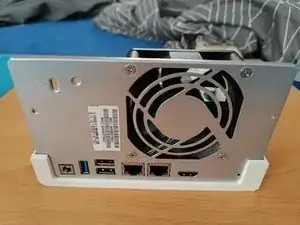

  4. KlOmnCvGBFtsF1AS
    KlOmnCvGBFtsF1AS

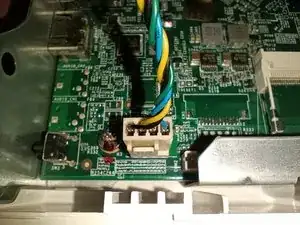

    NHt3puHAfbkNQsmV

    • To remove the fan, remove 4 screws securing the fan and disconnect the fan connector.

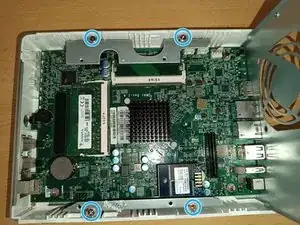

  5. wPZqCGZrMwYLekQ3

    • Remove 4 screws and take out the motherboard with the metal casing

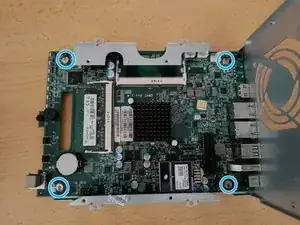

  6. FVfmRKjjavQFotMl

    • Remove 4 screws and slide out the motherboard from the casing

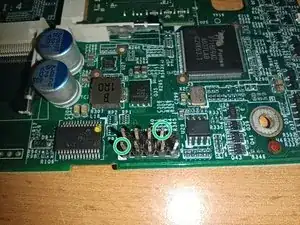

  7. xOxm1J3HKnL3rEPt
    xOxm1J3HKnL3rEPt

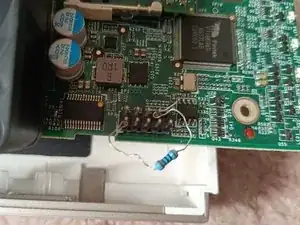

    cP2XbdhRfJC2qxSx

    • Connect these 2 pins with 100 ohm resistor

    • I recommend wraping the resistor's legs with a tape or something to prevent a short

    • I got this fix from comments under this reddit post https://www.reddit.com/r/qnap/s/zNTgi2Mu...

Conclusion

To reassemble your device, follow these instructions in reverse order.
