Optoma PRO360W Bulb Replacement

Written By: Desiree Benitez
  • Comments: 1
Optoma PRO360W Bulb Replacement

Difficulty

Easy

Steps

9

Time Required

8 minutes

Introduction

This guide will provide a step-by-step process on how to safely remove and replace a light bulb for an Optoma PRO360W projector. In the process of this removal, we will demonstrate how to clean the area of any dust and how to recycle the waste material- the old light bulb.

  1. CYgmEQjqACigOhwn

    • Unplug the projector from the wall outlet to allow for the light bulb to cool for at least 30 minutes.

  2. 2GtiatnhWbNdWDBO

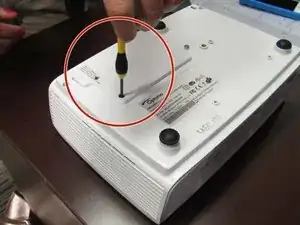

    • On the bottom side of the projector, locate and unscrew the back cover using a Philip's head screwdriver.

  3. oJuWpkBGM2ZsOY12

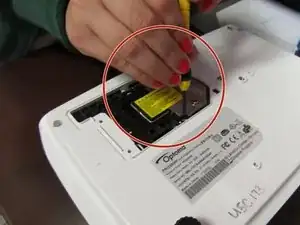

    • Unscrew the bulb screws on either side of the silver plate.

  4. pHdbjrenkNjQ3omZ

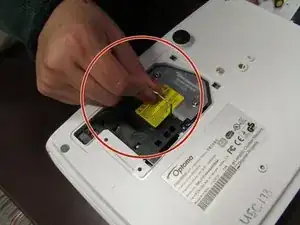

    • Remove the light bulb from the projector by lifting the silver handle and pulling up.

  5. hfldlAOdGFRMbFMB

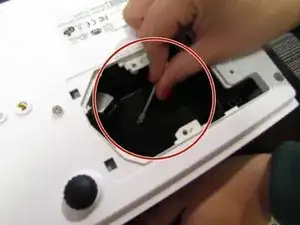

    • Clean the now vacant area where the light bulb once belonged of dust and particles using a Q-tip.

  6. GsBkhJQVCy4SdYBn

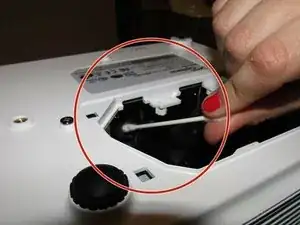

    • Use a new Q-tip to clean the fan blades and hole in which the light enters.

  7. VXGnqAQAIKW1Ihqu

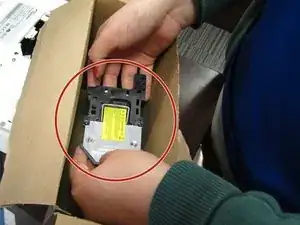

    • Open and remove the new light bulb from its box with clean hands to prevent from getting the bulb dirty.

  8. JgInvOC5vVFcYOJI

    • Place the new bulb inside making sure to align the bulb towards the light hole and the wire connector towards the wire receiver.

  9. pnobfvdmgQXHURVW

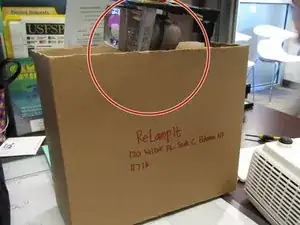

    • Dispose of the bulb by sending it to a recycling center.

Conclusion

To reassemble your device, follow these instructions in reverse order.
