Introduction

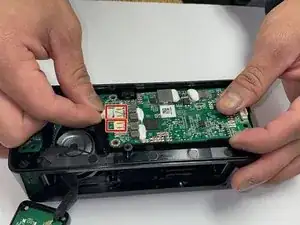

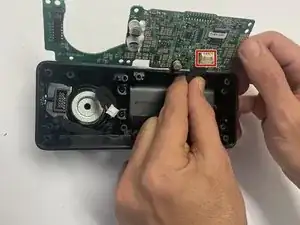

The motherboard is responsible for giving power and electricity to the speaker. With time, the motherboard can overheat and stop working. You must use the TR-9 screw to replace the motherboard. This replacement guide will teach you how to replace the whole motherboard. Be cautious because the motherboard is fragile.
-
-

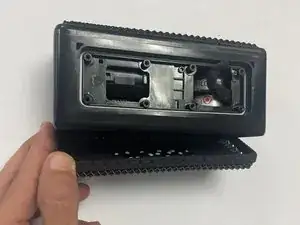

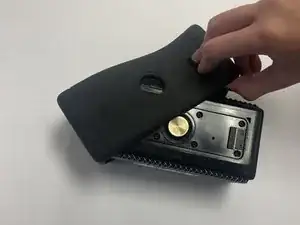

Pry the front of the speaker off using your nails or a device capable of fitting inside the crevice.
-
-
-

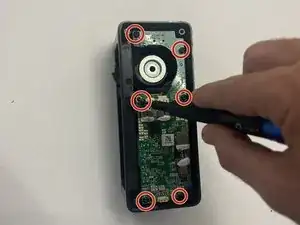

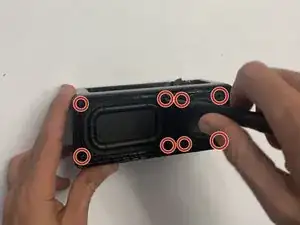

Once the front of the speaker is pried off, remove the eight 1.2 cm screws on the speaker.
-
Use a TR9 screwdriver for the screws.
-
To reassemble your device, follow these instructions in reverse order.
