Keurig K-Duo Air Pump Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 20 minutes

Introduction

This guide will show you how to replace the air pump in a Keurig K-Duo. Replacing the air pump may be necessary when there is no water coming out.

The air pump is a critical component that helps build pressure to move water through the machine. Over time, these pumps can fail due to various reasons, typically stemming from wear and tear, improper maintenance, or environmental factors.

  1. u5G2VXwxxjBCemEi

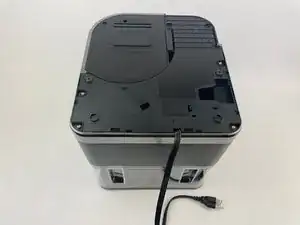

    • Turn the Keurig K-Duo upside down so the power cord is visible and facing you.

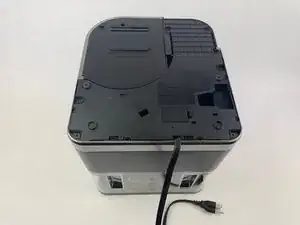

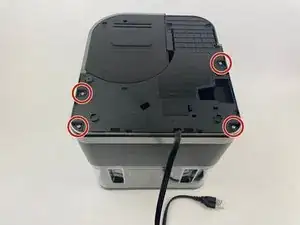

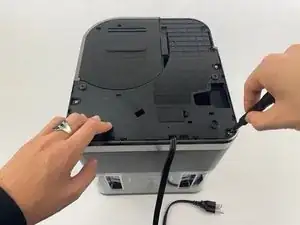

  2. nwBRAWMEKtiYoadB
    nwBRAWMEKtiYoadB
    wVRktE2wHEJUpcMK
    tk6axmIXCRbTXMNE

    • Use a Phillips screwdriver to remove all four screws that secure the plastic panel.

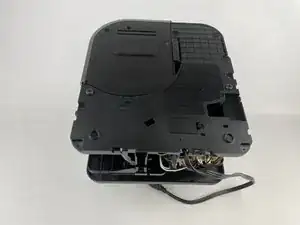

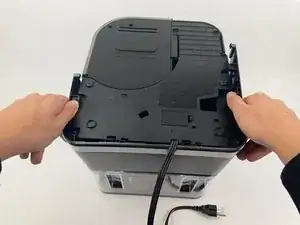

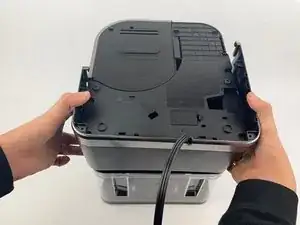

  3. dBkbqsDOX1IxbHtZ
    dBkbqsDOX1IxbHtZ
    RUEHMWDB6SvmNwGA
    f2LukGiWI4PxcimS

    • To remove the back panels, grip each side firmly.

    • Gently pull the panel outward toward yourself to release and fully detach the plastic hooks.

  4. DPcEbCyBShiqymYR

    • Turn Keurig K-Duo on its side to expose the air pump.

  5. rB2xnHGnUmj5OHCd
    rB2xnHGnUmj5OHCd
    MN4tLGZMOGgcTgKZ

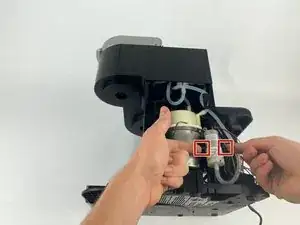

    • Place your fingers on the two black notches securing the air pump.

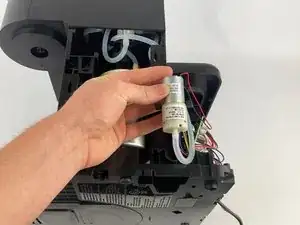

    • Pull upward to release it.

  6. 4jVERXq2atSNLFK3

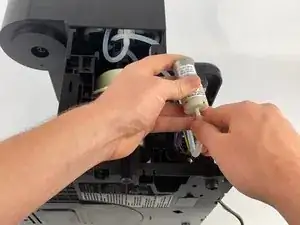

    • Firmly grip the clear tube located underneath the air pump and pull it off to disconnect.

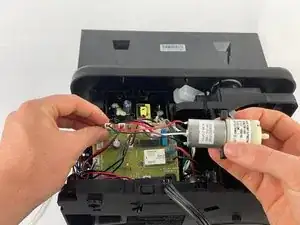

  7. ZKcgaUWgSVhtxbBi

    • Carefully turn the Keurig K-Duo to reveal the motherboard for inspection.

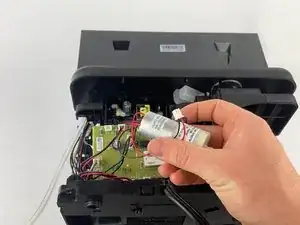

  8. 4BX54PMLdIVCmjIP
    4BX54PMLdIVCmjIP
    Y1KuT4R1GDtBUXHR

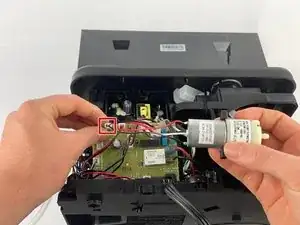

    • Remove the air pump wire from the motherboard by gently pulling the terminal block.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
