Introduction
This guide provides instructions for how to disassemble the Keebler Uncommonly Good Cake Pop Maker (Model Number: CPM-1K). Disassembly may be necessary to clean food residue from the inside of the device or identify an issue that needs to be repaired.
-
-

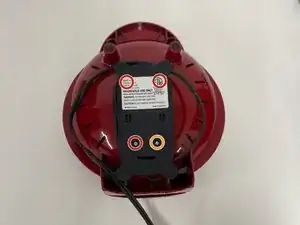

Remove three 11 mm screws from the back panel using a Phillips #2 screwdriver.
-

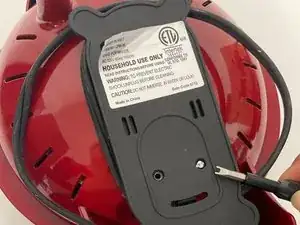

Remove the single 11 mm using a 3.0 spanner head screwdriver.
-
-
-
Remove the back panel.
-

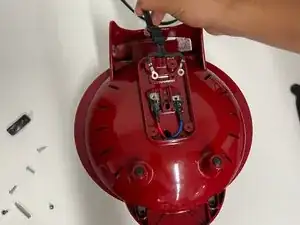

Remove the two black 8 mm screws with a Phillips #2 screwdriver.
-

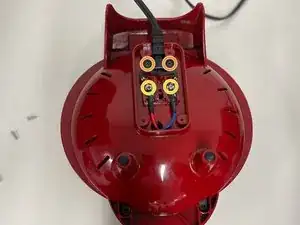

Remove the two silver 7 mm screws with washers using a Phillips #2 screwdriver.
-
-
-
Open the cake pop maker to expose the heating plates.
-

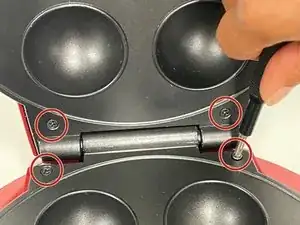

Remove the four 7 mm black screws located near the hinge where the device opens using a Phillips #2 screwdriver.
-

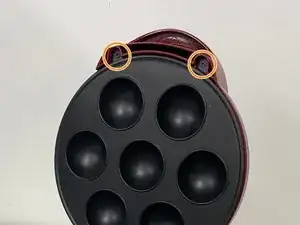

Remove the two 7 mm black screws at the front of the top plate using a Phillips #2 screwdriver.
-
-
-
Remove the bottom piece of the shell and lift up the top piece.
-

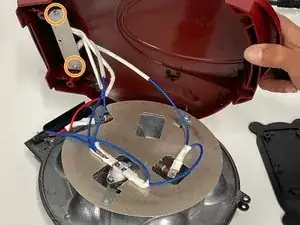

Remove the two 7 mm screws using a Phillips #2 screwdriver.
-
Fully remove the top piece.
-
-
-

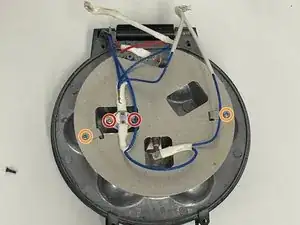

Remove the two 6 mm screws with washers using a Phillips #2 screwdriver.
-

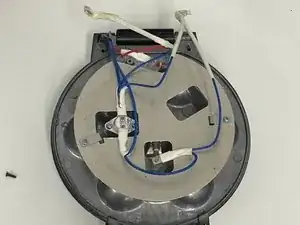

Remove the two 4 mm screws and small metal plates on either side of the device using a Phillips #2 screwdriver.
-

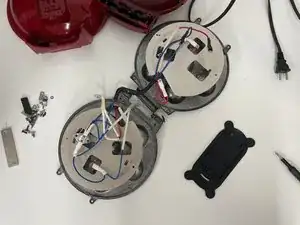

Repeat this process for the bottom plate.
-
To reassemble your device, follow these instructions in reverse order.
