Introduction
-
-

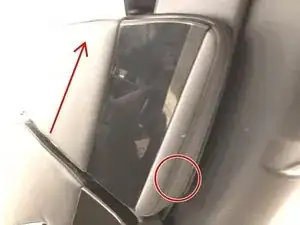

Next we need to remove the speakers. Speakers are removed by a secret button, when pressing in the area marked by the red circle you should feel a metal button. While pressing the button tilt the speaker upwards.
-

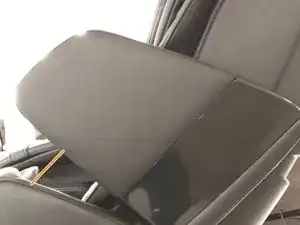

Notice the angle on the speaker, from here go ahead and with reasonable force pull the speaker towards you.
-
-
-

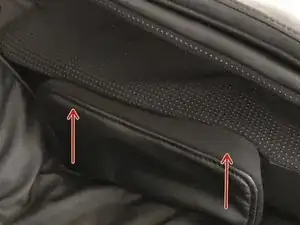

To remove the arms we first need remove the hip airbags. This will require a good amount of hand strength. while standing on the outside of the chair grab both sides of the airbag plate and pull up.
-

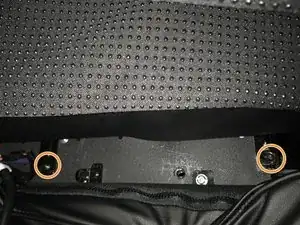

Remove the 2 bolts and washers that hold the arm on the frame.
-
-
-

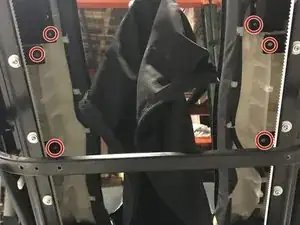

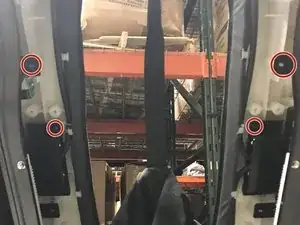

Remove the 6 screws on each side of the track. This will loosen the chair piece from the frame .
-

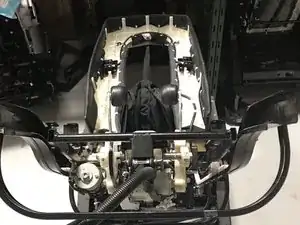

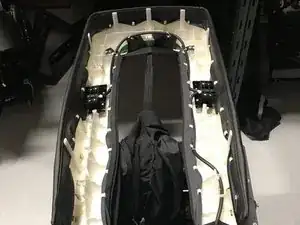

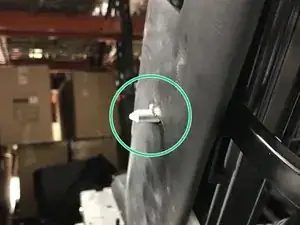

You will notice these spikes on each side of the frame, lift the chair piece over these .
-
-
-

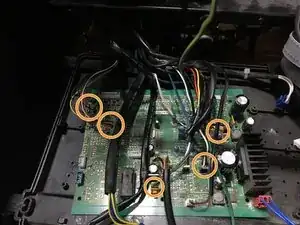

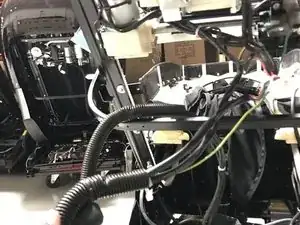

Next you will need to remove the wire harness from the chair. open the power box and unplug the marked cables.
-

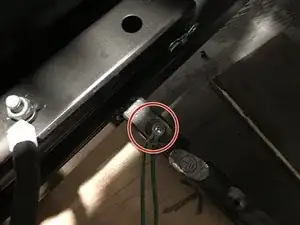

Be sure to unscrew the ground wire as well , it is located near the middle of the chair and has a ground wire leading to a cylinder as well, please remember this.
-
-
-

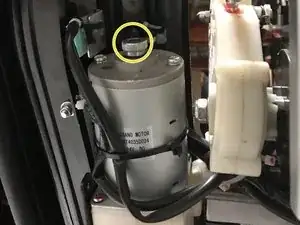

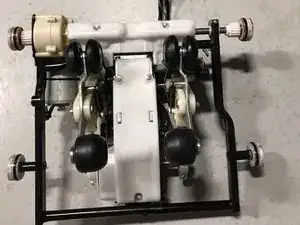

IF FOR ANY REASON the mechanism will not drive up to the top of the track or chair has no power, please remove this disk cover. and turn the the motor manually.
-
use this bolt to drive the motor up or down. BEWARE this is a incredibly time consuming way of driving the mechanism but it does work.
-
To reassemble your device, follow these instructions in reverse order.
