InFocus IN3114 LED Touch Board Replacement

Written By: Kevin Li
  • Comments: 0
InFocus IN3114 LED Touch Board Replacement

Difficulty

Moderate

Steps

4

Time Required

30 - 50 minutes

Introduction

The InFocus IN3114 projector uses an LED touch screen to provide users with control over the quality of the image produced.

Consider replacing the board if the LEDs on the board do not light up, or if the buttons on the board are not responsive when pressed.

This guide provides instructions on replacing the LED touch screen for the InFocus IN3114.

No special skills are required to complete this task, and all required tools are listed.

Before beginning the process, turn off the projector, unplug the power cable.

  1. LLYAfGYZVAW6JY46
    LLYAfGYZVAW6JY46
    6NjhCxLnpo1a1sJN

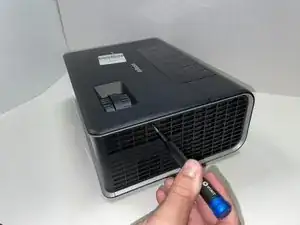

    • Use a Phillips #1 screwdriver to remove the 1.2 cm Phillips-head screw from each side of the projector.

  2. 2WirUASoTBtqodg1
    2WirUASoTBtqodg1
    RsqIQtPrXQH6JUja
    pgTVt6GQ4TuYMSAQ

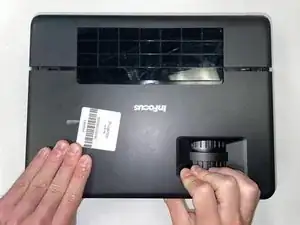

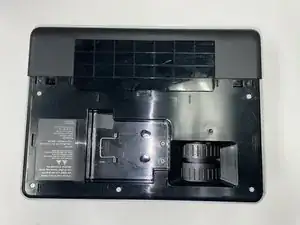

    • Use your hands to slide the top plate off of the projector.

    • Lift and remove the plate.

  3. 1nHqlOUQSUMPwlES
    1nHqlOUQSUMPwlES
    2DB5EfCZFHPYXcit

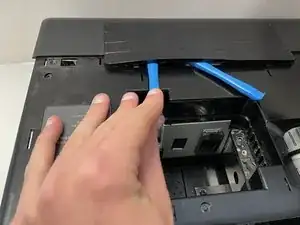

    • Use the opening tool to lift the control panel cover.

    • Remove the cover.

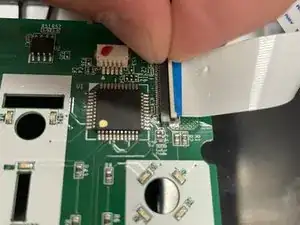

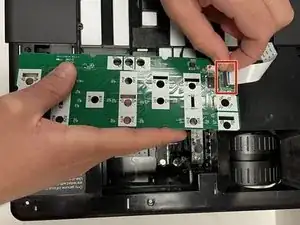

  4. ayRHRHuEuSplwQHi
    ayRHRHuEuSplwQHi
    E4HwConRIsO1pLcB
    ApknYaHGUZhgugnd
Conclusion

To reassemble your device, follow these instructions in reverse order.
