Introduction

  1. JGIEPCEMkexDWSAF
    JGIEPCEMkexDWSAF
    lKb5SqoHSqQcZsHY

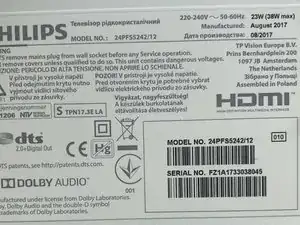

    • This is the Philips TV to be disassembled.

    • The stand is actually a loudspeaker and subwoofer system

    • There are no visible screws on the cover other than at the bottom of the stand which does not help to disassemble

  2. 5rBnvrFDHpEdahZw
    5rBnvrFDHpEdahZw
    ZQtKnP5AMrPl2PHb
    61lDC3cXjuTWbBbT

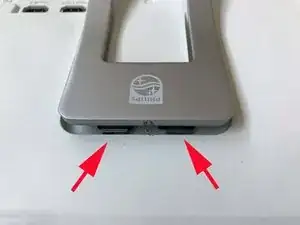

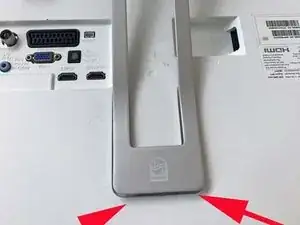

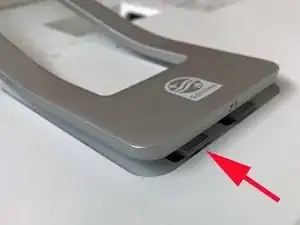

    • The (large) aluminum clip is attached to the back cover and the subwoofer preventing the back cover to come off

    • It needs some force to move, push the aluminum clip towards the subwoofer stand in order to release the two latches holding the clip to the back cover

  3. 1GYnKAC5fJP5qYEu

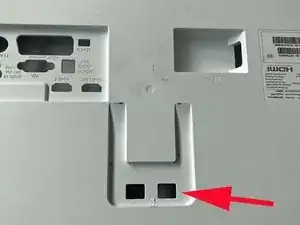

    • Remvoved back cover with the two holes for the clip latches

    • The back cover itself is just as usual "clicked in" the frame

  4. Th51pHBgFCPV1lDP

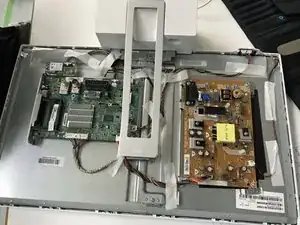

    • Back cover removed giving access to the power supply and main board

    • The subwoofer can also be detached from here
