How to Install a New Battery in Your Samsung Galaxy S22 or S22+

Written By: Spencer Day
  • Comments: 3
How to Install a New Battery in Your Samsung Galaxy S22 or S22+

Difficulty

Moderate

Steps

6

Time Required

20 - 30 minutes

Introduction

Use this guide to install a new battery in your Samsung Galaxy S22 or S22+.

This guide only shows the steps to install a new battery once you've removed the old one. If you haven't already, follow these guides to remove the battery:

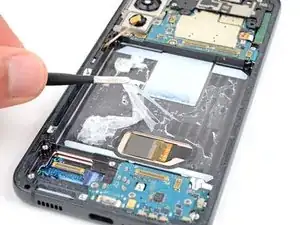

  1. ttutGG2hDCOTaZpX
    ttutGG2hDCOTaZpX
    l1LxwEhhUSDXh4rD

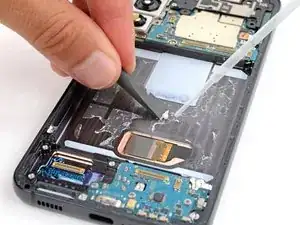

    • Use your fingers or tweezers to peel up and remove any large pieces of adhesive from the frame.

    • Apply a few drops of highly-concentrated isopropyl alcohol (greater than 90%) to the remaining adhesive.

    • Use the flat end of a spudger to scrape off all remaining adhesive.

    So how do you get the case off??

    Mitch -

    Hi Mitch, the guide for removing the battery is linked in the introduction.

    Spencer Day -

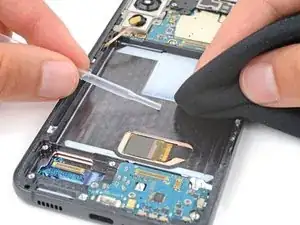

  2. N1yAIhX5HrPUZMBQ

    • Apply a few more drops of highly-concentrated isopropyl alcohol (greater than 90%) to any adhesive residue on the frame and wipe it away with a microfiber or lint-free cloth.

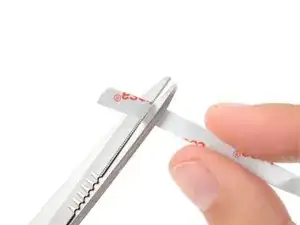

  3. EuoceLGfIOORe12X
    EuoceLGfIOORe12X

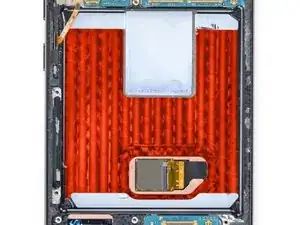

    QXalJuh6X1FKFl4G
    GRwr3Qy2PSCZodIj

  4. XQeLIIubM5N4Q433
    XQeLIIubM5N4Q433
    JTxVWPdPtJGqkdWg
    XuHgYQogMeJbJhcd

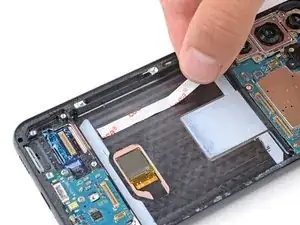

    • Lay a strip of tape onto the frame.

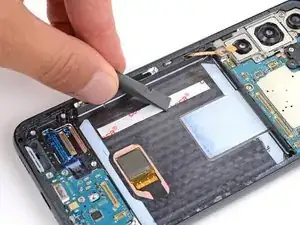

    • Use the flat end of your spudger to press down firmly along the whole strip to secure it.

    • Use tweezers to remove the liner from the strip of tape.

  5. WnnfYSCuwvxowcZ2
    WnnfYSCuwvxowcZ2

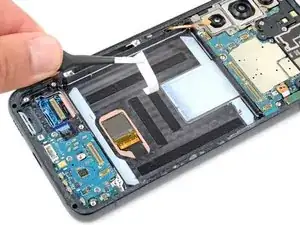

    RqjRPgDIPRh2pqit
    WlFT2bOmeINPuCtP

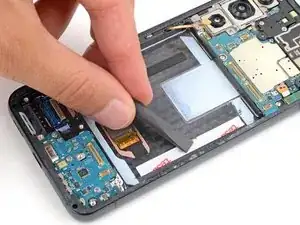

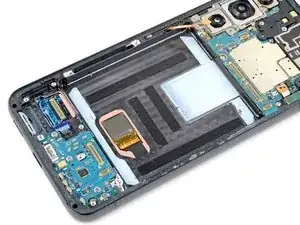

    • Repeat the previous step to apply the remaining strips of tape.

  6. C4PJZYTTL6aJYADo
    C4PJZYTTL6aJYADo
    SoYgXTTg41xi3EIN

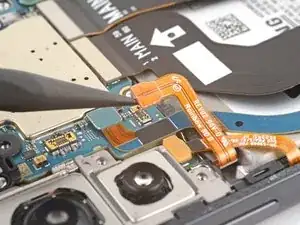

    I1WErtTgpRfnLreu

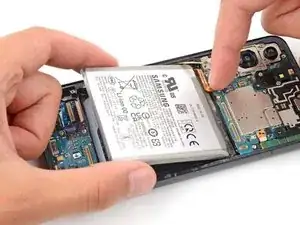

    • While holding the battery above its recess, reconnect the battery cable.

    • This ensures the battery is properly aligned.

    • Lay the battery into its recess in the frame.

    • Press down firmly on the entire surface of the battery to secure it with the tape.

    • Disconnect the battery.

    • Return to your repair guide and continue reassembly.

    • S22

    • S22+

Conclusion

For optimal performance, calibrate your newly installed battery after completing your repair.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
