Hover-1 All Star Wheel Replacement

Written By: Nathan Meyer
  • Comments: 0
Hover-1 All Star Wheel Replacement

Difficulty

Moderate

Steps

10

Time Required

25 - 40 minutes

Introduction

This guide will provide the user with all of the steps necessary to removing and replacing the two wheels on the Hover-1 All Star hoverboard. This step will require you to complete the disassembly of the casing, battery, and circuit boards before you can access the wheels. We have guides to those steps that you will need to follow before this step can be completed. Replacing the wheels can be necessary if one of the internal hub motors stops working or a wire has been broken or damaged in some way.

  1. 3a2fhOsbJjZojQLK
    3a2fhOsbJjZojQLK
    Gwmik1XvSdbRXwwd

    • Turn the hoverboard upside down and remove the twenty Phillips #1 screws that secure the casing.

  2. 5IetlRZwcB5KZvvY
    5IetlRZwcB5KZvvY
    1vy43rrCjnKAlOqV

    • After all the screws are removed simply pull off the bottom part of the casing in two pieces (Right and Left).

  3. MxsE2AwtB6kRcDtH
    MxsE2AwtB6kRcDtH
    iEqWiXTED1WCrEUW

    • Disconnect the battery from the circuit board via the orange connector.

  4. jD2H1U4ODtSONybt
    jD2H1U4ODtSONybt
    Mxd4NVp4bEx4uXlP

    • Remove the four small screws that secures the plastic battery bracket with a Phillips #1 screwdriver.

    • Remove the plastic bracket.

    • Once the plastic restraint is removed the battery will have nothing else holding it in but a piece of double sided tape on the bottom.

  5. DeI5s2tqWTrNrbna

    • Remove the battery.

    • This step will likely require you to use the plastic prying tool because the tape is very strong.

  6. 6Ux1WmrUGNAaerVO

    • Remove the four Phillips #1 screws that secure the mainboard.

  7. WHEgpQ2m3CQmCBOs

    • Disconnect all cables connected to the mainboard.

    • Also disconnect the three colored cables by pulling them apart.

  8. o1Zv6P2IMHays61R
    o1Zv6P2IMHays61R
    MtuOAM4YUaxFRXdH

    • Lift the mainboard up and out.

  9. exjnXCCkRpJeFXpY
    exjnXCCkRpJeFXpY
    JAELseKQiZANKMqJ

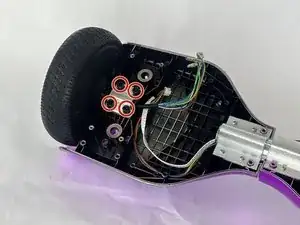

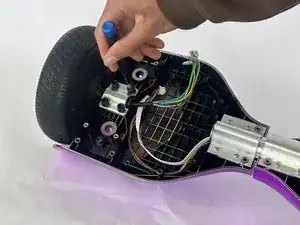

    • Remove the four 5 mm hex bolts that secure the wheel.

  10. GQWlJoWDNvyij5sN

    • Remove the wheel assembly.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
