Dyson V11 Battery Replacement

Written By: Harry Cutts
  • Comments: 4
Dyson V11 Battery Replacement

Difficulty

Easy

Steps

3

Time Required

2 minutes

Introduction

  1. JREqCWfSTslHATyN

    • Remove one Phillips #1 screw from the back of the handle

  2. aBoiEmNhQWqmf4dh

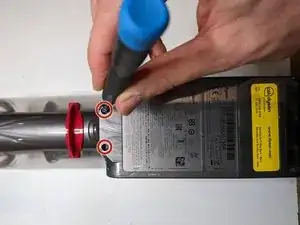

    • Remove the two Phillips #1 screws from the underside of the battery.

    La tête de la vis est abîmée à force d’essayer de la retirer

    Dany ENRICH -

    Comment faire pour l’enlever ?

    Dany ENRICH -

  3. KXV4BEbj6tsmnUV6

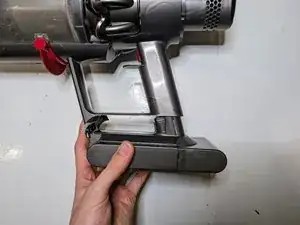

    • Pull down on the battery to slide it out of the handle.

    when inserting new battery, don' push too hard you may damage the trigger plastic button

    mario -

    Traducción, gracias por el aporte Mario: al insertar una pila nueva, no presione demasiado fuerte, podría dañar el botón de plástico del gatillo

    Carlos López (España - Spain) -

Conclusion

To reassemble your device, follow these instructions in reverse order.
