This guide will walk you through the process of reaching the inside of a Cuisinart toaster oven. The oven's components are contained within this inner layer, and reaching them requires removal of the entire outer layer.
-
-

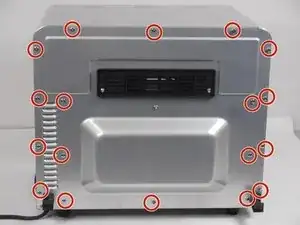

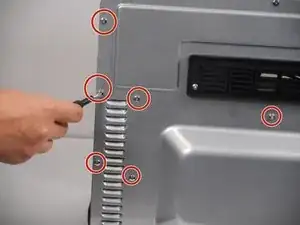

Using a Phillips #1 screwdriver, remove all of these 7.31 mm screws.
-
Pull off the back panel.
-
-
-

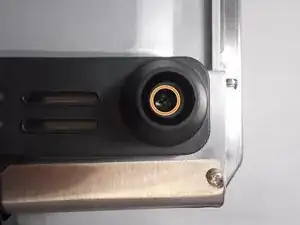

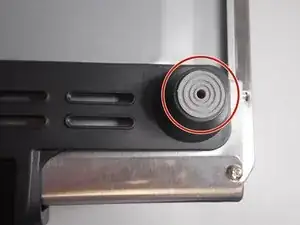

Use a spudger to pull out the grey stoppers.
-

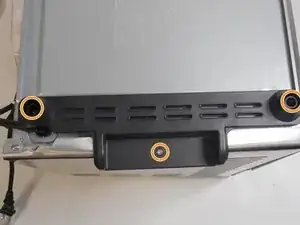

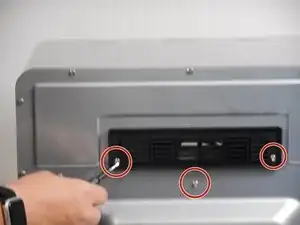

Use a Phillips #1 screwdriver to remove all three 11 mm screws.
-
-
-

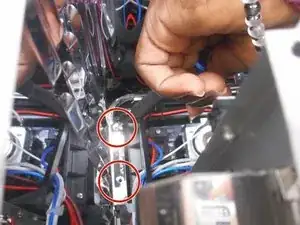

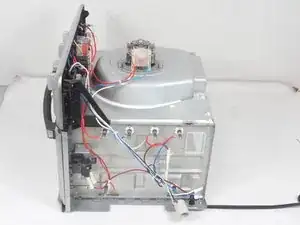

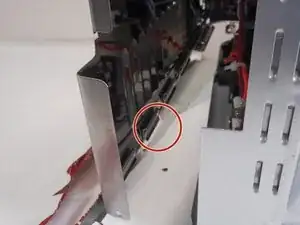

Push down with a screw driver between the tabs, then pull up to release the tabs. Pull the top piece off.
-
Conclusion
To put the device back together, follow these steps in reverse order.
