Canon PowerShot S410 LCD Screen Replacement

Written By: kubayubay

Comments: 0

Canon PowerShot S410 LCD Screen Replacement

Difficulty

Difficult

Steps

Time Required

35 - 55 minutes

Introduction

If your Canon PowerShot S410 is displaying distorted images or no image at all, it might be time to replace the LCD screen. Follow this step-by-step guide to restore your camera’s functionality.

The LCD screen plays a crucial role in translating visual input from the lens into a clear image that you can view. A malfunctioning or damaged LCD can lead to distorted visuals or a blank screen, making it difficult to capture the perfect shot.

Before diving into the repair, take a moment to check the camera settings. Press the DISP button on your Canon PowerShot S410 to ensure the display is enabled and that the issue isn’t just a simple setting error.

To complete this repair, you'll need a Phillips #0 screwdriver and a pair of tweezers. Don’t worry—no prior experience is necessary, and this process is straightforward.

As you work with the tools, handle everything gently to avoid causing further damage to your camera. Some steps will involve carefully pulling a ribbon cable to detach components, so proceed with caution.

Ready to get started? Let’s go!

Tools

Step 1

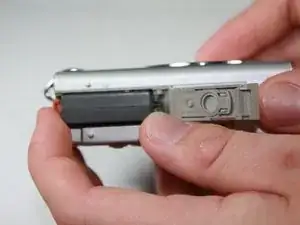

Turn the camera with the bottom side facing up.
Locate the panel labeled "Batt. Open"
Place your finger on the panel and slide it in the direction of the arrow.
The slot will swing open revealing the battery pack.

Step 2

Pull the orange lever and the battery will spring out slightly.

Step 3

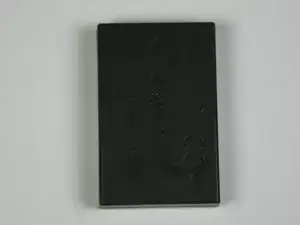

Grasp the battery and fully pull it out of its slot.
When placing the new battery back in the slot, the arrow on the battery must align with the arrow on the camera.

Step 4

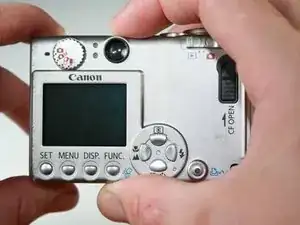

Start by laying the camera flat with the LCD screen facing up.

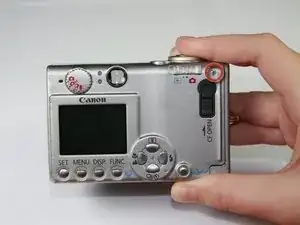

Using the Phillips #0 screwdriver, remove the 3.8mm screw in the upper right corner.

Step 5

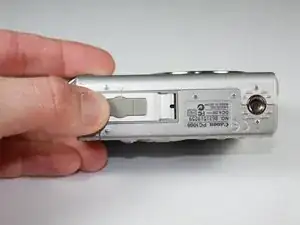

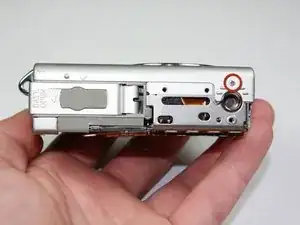

Position the camera with the bottom facing up.

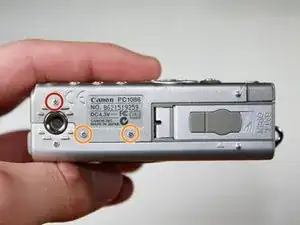

Twist the screwdriver counter-clockwise to remove the 4.8mm screw.
Repeat to remove the two 2.3mm screws.

Step 6

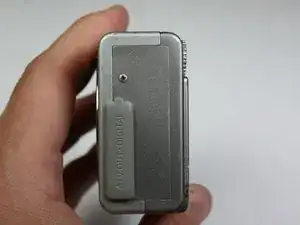

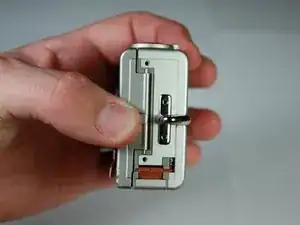

Position the camera so that the rubber "AV Out Digital" tab is facing upward.
Slide the rubber tab to reveal the bottom screw.

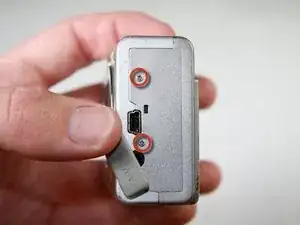

Using the screwdriver, remove the two 3.7mm screws.

Step 7

Turn the camera with the back side facing you.
Grip the edges of the back plate, and carefully slide it off.
If there is any resistance in movement, double check there are no screws left in the chassis.

Step 8

Orient the camera as in the picture.
Remove the two 2.3mm outer screws using the Phillips #0 screwdriver.
Remove the two 3.8mm screws near the strap bracket.
Remove the small panel covering the mounting bracket.
Remove the door covering the memory card.

Step 9

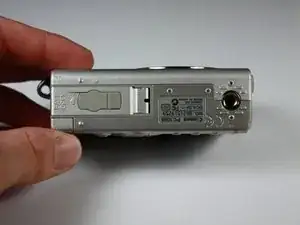

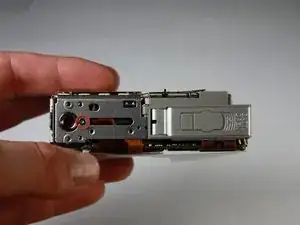

Rotate the camera so that the bottom side is facing you.
Remove the 3.8mm screw below the mounting bracket using the Phillips screwdriver.

Step 10

Rotate the camera so that the front is facing you.

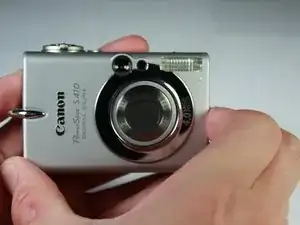

Grasp the sides of the front cover and carefully pull the front panel off of the camera.

Step 11

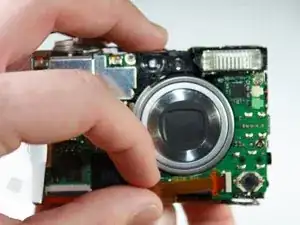

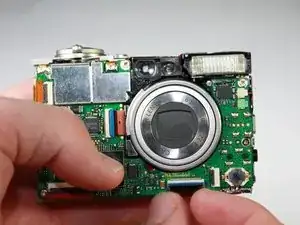

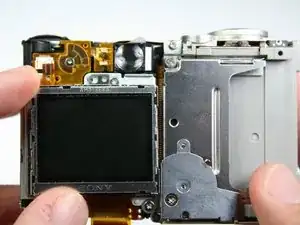

Position the camera so that the motherboard is facing you.
A fingernail or spudger can be used to remove the plastic flap covering the motherboard.

Step 12

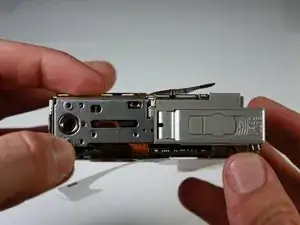

Turn the camera so that the bottom side is facing you.
Remove the 2.1mm screw using the Phillips #0 screwdriver
Grab the sides of the bottom panel and lift to expose the ribbon cable.

Step 13

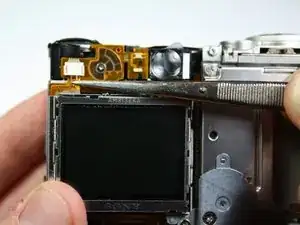

Turn the camera so that the motherboard is facing you.
Using your fingernail, open the black clip holding the ribbon cable.
Gently pull out the ribbon cable in the direction of the cable using your fingers or tweezers.
