Brother CS6000i Sewing Light Replacement

Written By: Aidan Lear
  • Comments: 0
Brother CS6000i Sewing Light Replacement

Difficulty

Moderate

Steps

9

Time Required

15 minutes

Introduction

If your Brother CS6000i sewing light is flickering, dim, or not working at all, use this guide to replace the old LED light.

Before you begin, inspect the light for any debris or build up on the bulb. If the bulb is dirty, this could cause it to illuminate less. Make sure this is not the case before disassembling the sewing machine.

Step 5 requires you to remove the light wiring from the PSU. A faulty connection beforehand could be the reason for the light not working. Make sure that the faulty connection is not the issue before buying a new part to replace the light system.

Before beginning, make sure the sewing machine is not connected to any power.

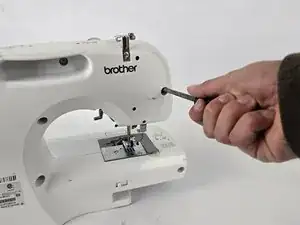

  1. gHBCqmQxl1xlTgNJ
    gHBCqmQxl1xlTgNJ
    4brVwmOqhKKA2aEh

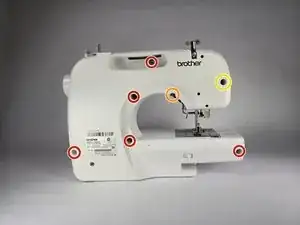

    • Remove the five 20 mm Phillips #2 screws on the back of the device.

    • Remove the single 28 mm Phillips #2 screw on the back of the device.

    • Remove the single 23 mm Phillips #2 screw on the back of the device.

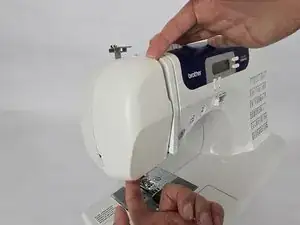

  2. khTF4unDjLUHG6BN
    khTF4unDjLUHG6BN
    2bMLWSYLw5hesvYu

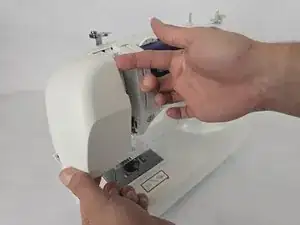

    • Pull the white cover off.

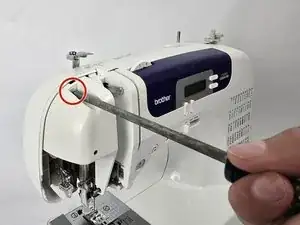

  3. OGYPMEXYdaphgvaY
    OGYPMEXYdaphgvaY
    12Gjhy3HEOKUDOxC

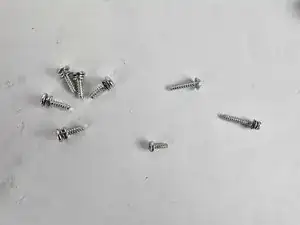

    • Remove the final screw, a 11 mm Phillips #2.

    • After removing all eight screws, you will have five 2 mm screws, one 28 mm screw, one 23 mm screw, and one 11 mm screw, all of which are Phillips #2.

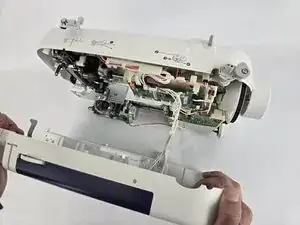

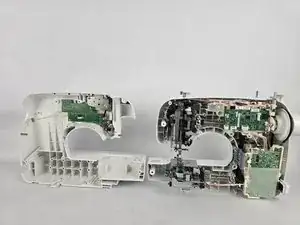

  4. e4rhLwRchXLjZdDZ
    e4rhLwRchXLjZdDZ
    hHiGEOVBCiCa2NCm
    CB63ku3eqSjJwsf6

    • Slightly pull apart the two halves of the machine, taking care not to strain the attached cables.

    • Unhook the white wires that are connected to the motherboard.

    • Fully separate the two halves.

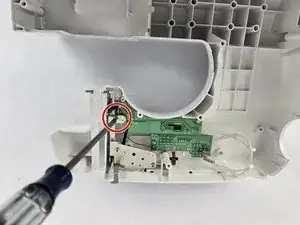

  5. BOhUCSkI4IuJUXw6

    • Use a Phillips #2 screwdriver to remove the single 16 mm Phillips #2 screw.

    • Remove the metal plate.

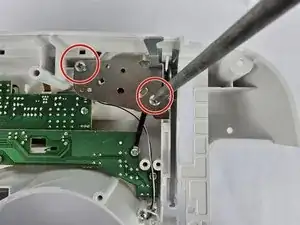

  6. VRQuA3M1EgXXRPpx

    • Use a Phillips #2 screwdriver to remove the two 16 mm Phillips #2 screws.

    • Remove the metal plate underneath screws once screws are removed.

  7. ciOEXtS65qfYxybN

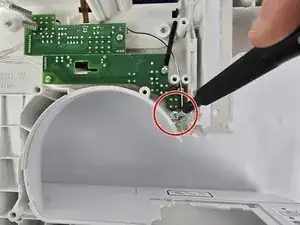

    • Use a standoff tip to remove the 10 mm Phillips #2 screw directly next to the lightbulb.

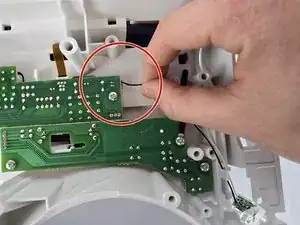

  8. 3ys6rCPJClrY2VLK

    • Disconnect the light connector from the PCB.

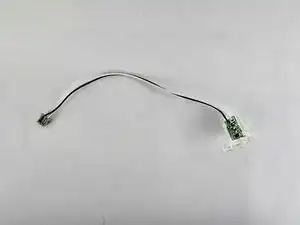

  9. frwKnMq4gdeK65cX

    • Remove the light.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
