2004-2006 Scion xA Cabin Air Filter Replacement

Written By: mariano Espinosa
  • Comments: 1
2004-2006 Scion xA Cabin Air Filter Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 15 minutes

Introduction

This quick and easy guide will help you replace the cabin air filter of a Scion xA 2004-2006 automobile.

The cabin air filter in a car plays an important role in the safety of the driver and its passengers. The filter removes dust, pollen, and other particles from entering the cabin.

A cabin air filter will need to be changed every 20,000 miles, once a year, or if there is a moldy odor coming from the car's air vents.

This replacement will take 10-15 minutes and does not require any tools.

  1. QbTXxmDMR3mNGVYZ
    QbTXxmDMR3mNGVYZ
    Fd4fXnLOVi5vPKgA

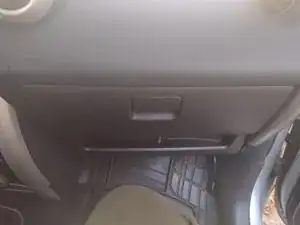

    • The cabin air filter is located behind the glove compartment.

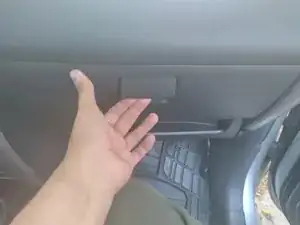

    • Open the glove compartment by lifting the knob in the center of the compartment.

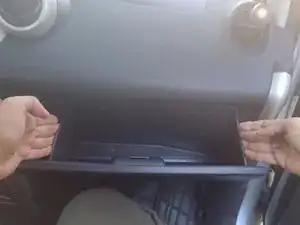

  2. DelEX3TYKv5kSPWw

    • Empty the glove compartment.

    • Press firmly on both sides of the compartment to dislodge it from the rubber stopper.

    • Remove the glove compartment.

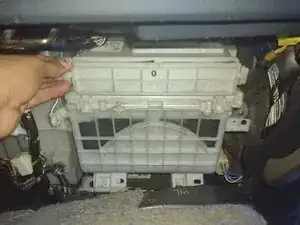

  3. SFEJrFpGnIsdIpv2
    SFEJrFpGnIsdIpv2

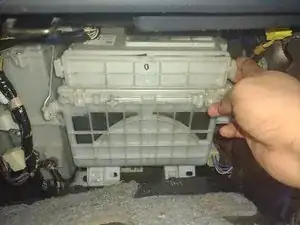

    CTeea4BjGDJNX4nM

    • The housing inside the cabin air filter compartment protects the cabin air filter.

    • Press the clips on the sides of the cabin air filter housing to unlatch and allow removal.

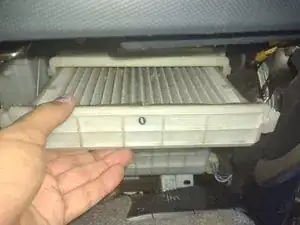

  4. hVdBYV6BmvENsJ1U

    • Pull out the housing protecting the cabin air filter.

  5. 5nEBgNUCKrpI6JT2
    5nEBgNUCKrpI6JT2
    MU2JH5QJRAQGtAMD

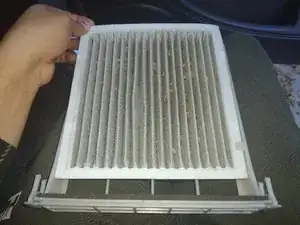

    • Take note of the air filter's orientation in the cover. The printed airflow arrow on the filter is pointing down.

    • Pull the air filter away from you to remove the air filter from its housing.

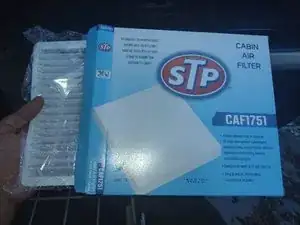

  6. YYkxnfQhuG5IGYih
    YYkxnfQhuG5IGYih

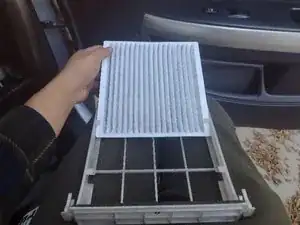

    ahl3Um5FJhBLRIDN

    • Insert the new cabin air filter into the cover. Place filter in the correct orientation noted in the previous step.

    • An Incorrect cabin air filter orientation will lead to improper air circulation. The printed air flow arrow should always be pointed down.

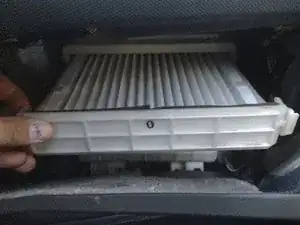

  7. Djpwf3VFwMxOSP2P

    • Slide the housing back into the air filter compartment.

    • The housing side tabs will latch into place ensuring its security.

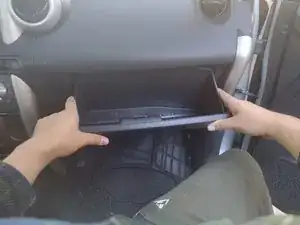

  8. subOFrIfchkwkEGE

    • Hook the glove compartment cover into its position. While closing the compartment, squeeze the sides until the rubber stopper latches into place.

Conclusion

After completing these guide steps, you have correctly replaced your Scion xA 2006 cabin air filter. Now, take your mind off life's troubles and breathe crisp, clean air.
